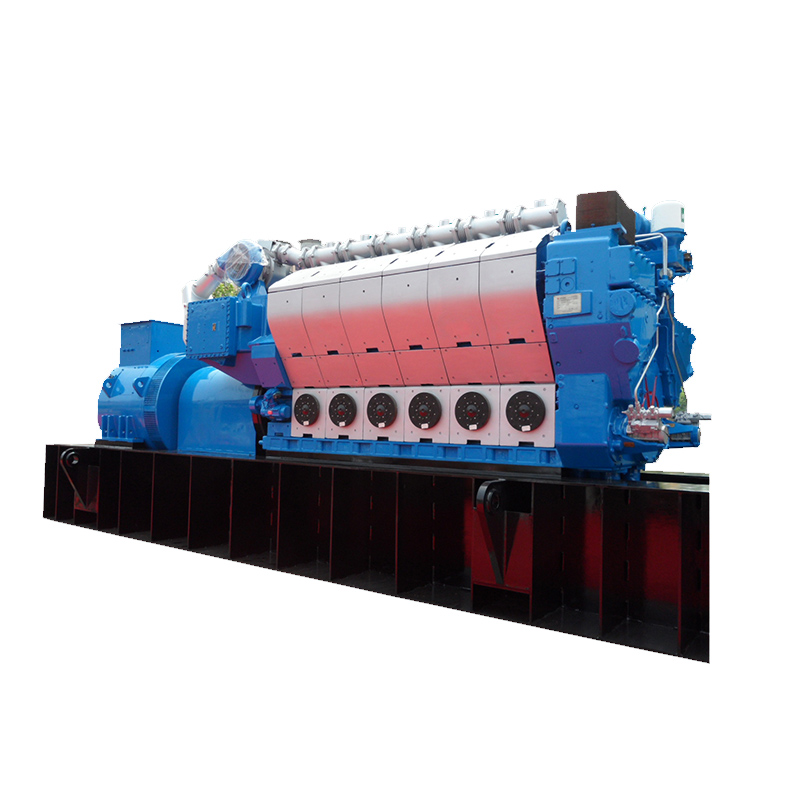

2632 Series (2400KW-3900KW)

High pressurization, high power, low fuel consumption, high reliability and long life of medium-speed engines

  Contact Now
Product Details

Specification of 2632 Series

Series 26/32 engine is developed by Jichai in cooperation with AVL Of Austria which Jigai has all intellectual property rights of high pressurization, high power, low fuel consumption, high reliability, and long life of medium-speed engines. All the technical indexes have reached the international advanced level。 It uses the world's leading high-pressure common rail fuel system, greatly reducing camshaft size, dual electronic control system, high supercharging technology super high supercharging technology, MPC exhaust system. Strong Miler cycle, double stage intermediate cooling technology. Self-cleaning filtration technology greatly improves engine performance and emissions.

Series 26/32 heavy oil machine is a new product developed by Jichai to meet the needs of China's economic and environmental development and Jichai owns all independent intellectual property rights. The key technical indexes of series 26/32 heavy oil engines, such as average pressure, fuel consumption rate, single-cylinder power, and emission, have all reached or exceeded the international advanced level. Because it burns heavy oil, it greatly reduces the running cost of the engine and has high reliability, low emission, and high intelligence, and other characteristics. It is well received by users of power equipment such as inland river navigation, dredging project, offshore oil equipment manufacturing, Chinese port construction, and large-scale power station.

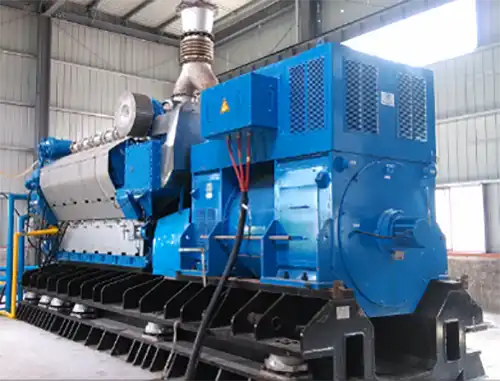

Heavy oil generator.png

Genset modelEngine modelAlternator modelPower kWRPM,r/minVoltage VFrequency HzPower factorDimension mmWeight kg
2400GF9L2632The standard configuration is CSIC TFC4 Series, which can be selected according to customers' requirements2400900480/13800600.88800×2920×353559000
2800GF28001000400V/6300V/10500V50
3200GF12V26/323200900480/138006011392×2820×360062000
3900GF39001000400V/6300V/10500V50
