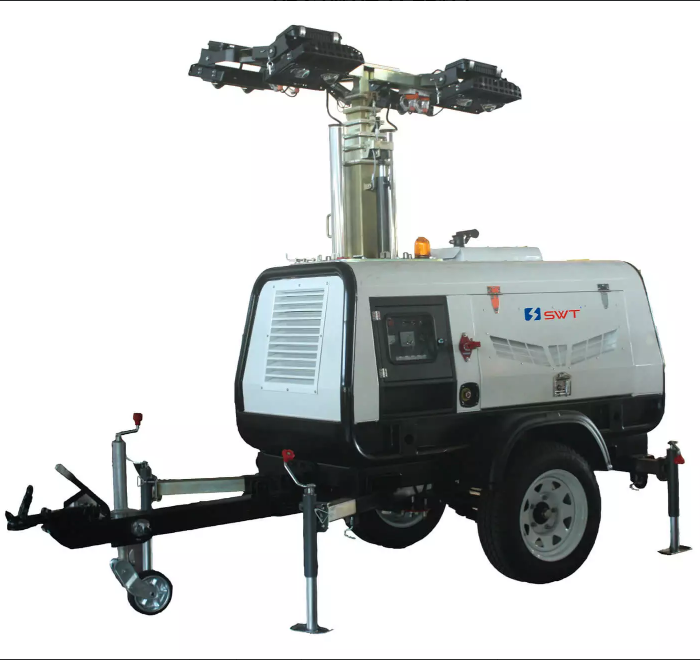

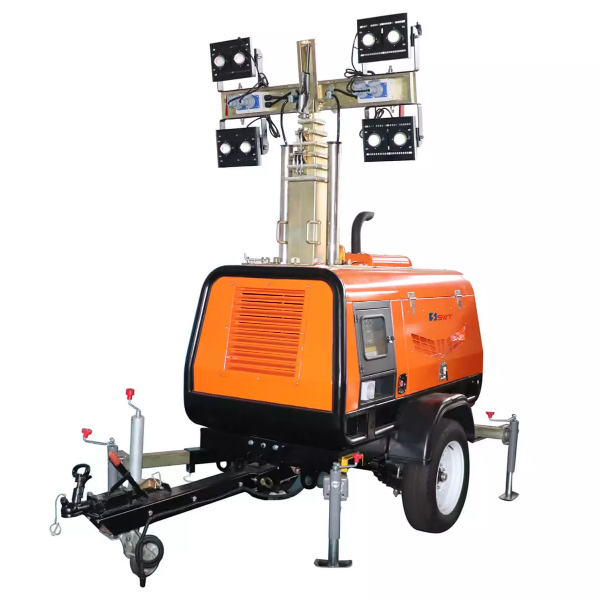

“V” series lighting tower
“V” series is the latest design and manufacture lighting tower with the vertical telescopic mast, and the smaller size makes the transportation become more convenient. The “V” series includes VL, VP, VS.
“V” series is the latest design and manufacture lighting tower with the vertical telescopic mast, and the smaller size makes the transportation become more convenient. The “V” series includes VL, VP, VS.
HVP Series Lighting Tower | |||||||
Basic Model | 4HVP4000 | 4HVP1200 | 4HVP1600 | ||||
Dimensions | Length | 4000mm | 4000mm | 4000mm | |||
Width | 1620mm | 1620mm | 1620mm | ||||
Height | 2460mm | 2460mm | 2460mm | ||||
Full extending Heigh | 9m | 9m | 9m | ||||
Genset power(1500/1800rpm-KW) | 6.0/7.5 | 3.0/3.5 | 3.0/3.5 | ||||
Gross weight | 1410kg | 1360kg | 1360kg | ||||
Engine | Engine model | D1105-E2BG-CHN-1 (KUBOTA) | Z482-B-CHN-1 (KUBOTA） | Z482-B-CHN-1 (KUBOTA） | |||
Speed(rpm) | 1500/1800 | 1500/1800 | 1500/1800 | ||||
Number of cylinders | 3 | 2 | 2 | ||||
Engine characters | Vertical, 4-cycle, Water-cooled, diesel engine | Vertical, 4-cycle, Water-cooled, diesel engine | Vertical, 4-cycle, Water-cooled, diesel engine | ||||
Combustion System | E-TVCS | Direct injection | Direct injection | ||||
Engine aspiration | Naturally aspirated | Naturally aspirated | Naturally aspirated | ||||
Emission level | Regular | Regular | Regular | ||||
Alternator | Alternator model | MECCALTE, LT3N-130/4(50HZ), LT3N-100/4(60HZ) | LT3N-75/4 (MECCALTE) | LT3N-75/4 (MECCALTE) | |||
Frequency (HZ) | 50/60 | 50/60 | 50/60 | ||||
Rating voltage (V, AC） | 230V (50HZ), 240V (60HZ) AC | 230V (50HZ), 240V (60HZ) AC | 230V (50HZ), 240V (60HZ) AC | ||||
Alternator insulation | Class H | Class H | Class H | ||||
Alternator protection grade | IP23 | IP23 | IP23 | ||||
Mast & Lights | Type of Lights | Regular metal halide | LED | LED | |||
Light's fixture | Oval | Rectangle | Rectangle | ||||
Luminous flux (LM) | 440000(4×110000)LM | 156000(4×39000)LM | 208000(4×52000)LM | ||||
Number & power of lights | 4×1000W | 4×300W | 4×400W | ||||
Number of mast sections | 7 | 7 | 7 | ||||
Mast extension | Hydraulic | Hydraulic | Hydraulic | ||||
Mast rotation | 359° Manually | 359° Manually | 359° Manually | ||||
Light tilt | Electric | Electric | Electric | ||||
Trailer | Trailer suspension & axle with brakes | Leaf springs & single axle with mechanical brakes | Leaf springs & single axle with mechanical brakes | Leaf springs & single axle with mechanical brakes | |||
Tow bar | Retractable & adjustable supporting wheel tow bar | Retractable & adjustable supporting wheel tow bar | Retractable & adjustable supporting wheel tow bar | ||||
Stabilizing legs & number | 4pcs drawable bar with manual retractable jacks | 4pcs hydraulic pivot legs | 4pcs drawable bar with manual retractable jacks | 4pcs hydraulic pivot legs | 4pcs drawable bar with manual retractable jacks | 4pcs hydraulic pivot legs | |
Wheel's rim size & tires | 16" rim with regular tires | 16" rim with regular tires | 16" rim with regular tires | ||||
Tow adapter | 2" ball coupler or 3" pintle ring | 2" ball coupler or 3" pintle ring | 2" ball coupler or 3" pintle ring | ||||
Tail lights | Tail light kit | Tail light kit | Tail light kit | ||||
Max towing speed | 100km/h | 100km/h | 100km/h | ||||
Additional Features | Fuel tank Type | Double-deck tank | Double-deck tank | Double-deck tank | |||
Fuel tank capacity | 120 liters | 120 liters | 120 liters | ||||
Operating hours with full load | 49/41 hours | 93/84 hours | 93/84 hours | ||||
lighting hours with full fue | 80/69 hours | 200/188 hours | 170/158 hours | ||||
Wires & electric components | Regular | Regular | Regular | ||||
Generator starting type or controller | HGM1790N（SMARTGEN） | HGM1790N（SMARTGEN） | HGM1790N（SMARTGEN） | ||||
Power outlet sockets | 1 unit Euro standard 16A single phase socket | 1 unit Euro standard 16A single phase socket | 1 unit Euro standard 16A single phase socket | ||||
Tool box with the maintenance tools | 1 | 1 | 1 | ||||
Max. against wind when fully extended | 20 m/s | 20 m/s | 20 m/s | ||||
Acoustic pressure | 72dB(A) at 7 meters away | 70dB(A) at 7 meters away | 70dB(A) at 7 meters away | ||||
Standard colour | Any colour for canopy with Black chassis, | Any colour for canopy with Black chassis, | Any colour for canopy with Black chassis, | ||||
Max. # of units loading in 40' high container (Some components would be detached) | 7 | 7 | 7 | ||||
