Product Introduction
Having the advantages of intrinsic safety and independent design of system power and capacity, the all-vanadium liquid flow energy storage system can be applied to scenarios of special demand, such as remote well sites, and can meet the long-term energy storage demand for more than 4 h. Therefore, it has significant technical advantages in the construction of zero-carbon well sites in oil fields. The whole product is of container type, facilitating management, and operation and maintenance. The system features low self-discharge performance and low capacity attenuation rate, and the comprehensive efficiency can reach over 70%.
Technical Parameters
Parameters of energy storage system | 125kW/500kWh | 500kW power module | 1MW/4MWh |
Rated power | 125kW | 500kW | 1MW |
Voltage range | 3240~372V | 312V~498 | 623V~996 |
Single stack power | 32kW | 42kW | 42kW |
DC system efficiency | ≥80% | ≥80% | ≥80% |
Operating ambient temperature | -20℃~40℃ | -20℃~55℃ | -20℃~55℃ |
Nominal capacity | 500kWh | 1 - 5MWh (flexible design) | 4MWh |
Maximum current | 512A | 1603A | 1603A |
Number of stacks | 4 | 12 | 24 |
Comprehensive system efficiency | ≥70% | ≥70% | ≥70% |
Operating ambient humidity | 5%~95%RH | 5%~95%RH | 5%~95%RH |
Applicable Scenarios
Power grid: the system can be used for peak shaving, frequency modulation, new energy grid-connected and standby power supply; industrial and commercial energy storage: it is used for “peak shaving and valley filling” of the power consumption to achieve peak-valley arbitrage; microgrid power supply of remote or isolated island; distributed energy storage system: it integrates wind and solar energy storage, and is used for the construction of zero-carbon well sites, communities or standby power supplies.
Product introduction
280Ah/314Ah/587Ah cells are adopted for the products of centralized lithium iron phosphate battery energy storage system. The single cabinet capacity of air-cooled battery compartment is 1.5 - 3.35 MWh, and the single cabin of liquid cooling system can reach 2 - 6 MWh. It is equipped with all-in-one machine of converter and booster, which meets the requirements of 0.25C - 1C charge and discharge rate, and features high safety, long service life and low cost. The product is suitable for the supporting energy storage systems of new energy power stations, and can be applied to large-scale energy storage systems on the power generation side and the power grid side. The energy storage battery system integrates battery module, high-precision BMS management system, lighting, intelligent temperature control and fire protection module, and adopts skid-mounted structure design. The protection level of the whole machine can reach IP55, and it supports the voltage level of 1500V/1000V, which meets the multi-scene applications such as peak regulation on new energy generation side and power grid side. It is suitable for PCS equipment with power level of 1250kW/1725kW/2500kW, compatible with the configuration schemes of 2-h, 3-h and 4-h energy storage system, capable of performing core functions such as peak shaving and valley filling, smooth power output and dynamic capacity increase, supports coordinated operation with photovoltaic and wind power systems, and provide diversified energy management services such as emergency power backup, frequency modulation and peak regulation.
Function Features
Prefabricated battery compartment | Battery compartment capacity (MWh) | 3.35 | 3.35 | 5.015 | 6.251 |
Cell capacity (Ah) | 280 | 280 | 314 | 587 | |
Nominal voltage (V) | 3.2 | 3.2 | 3.2 | 3.2 | |
Plug-in box combination mode | 1P16S | 1P52S | 1P52S/1P104S | 1P104S | |
Standard charging and discharging current (A) | 140 | 140 | 157 | 293.5 | |
Cluster combination mode | 1P416S | 1P416S | IP416S | IP416S | |
Cluster nominal energy (kWh) | 372.736 | 372.736 | 417.997 | 781.414 | |
Voltage range (V) | 1040〜1518.4 | 1040〜1518.4 | 1040〜1518.4 | 1040〜1518.4 | |
Stack combination mode | 9P416S | 9P416S | 12P416S | 8P416S | |
Cooling method | Air cooling | Liquid cooling | Liquid cooling | Liquid cooling | |
Firefighting system | Perfluorohexanone, compartment class | Perfluorohexanone, Pack grade | Perfluorohexanone, Pack grade | Perfluorohexanone, Pack grade | |
Container specification | 32 ft | 20 ft | 20 ft | 20 ft | |
Weight (t) | 40 | 36 | 45 | 49 | |
All-in-one machine of converter and booster | Rated power (MW) | 3.45 | 3.45 | 5 | 6.9 |
Transformer capacity (MVA) | 3.45 | 3.45 | 5 | 6.9 |
Applicable Scenarios
Large-scale centralized photovoltaic and wind power, distributed photovoltaic and wind power, power auxiliary service, peak-valley arbitrage, power capacity increase.

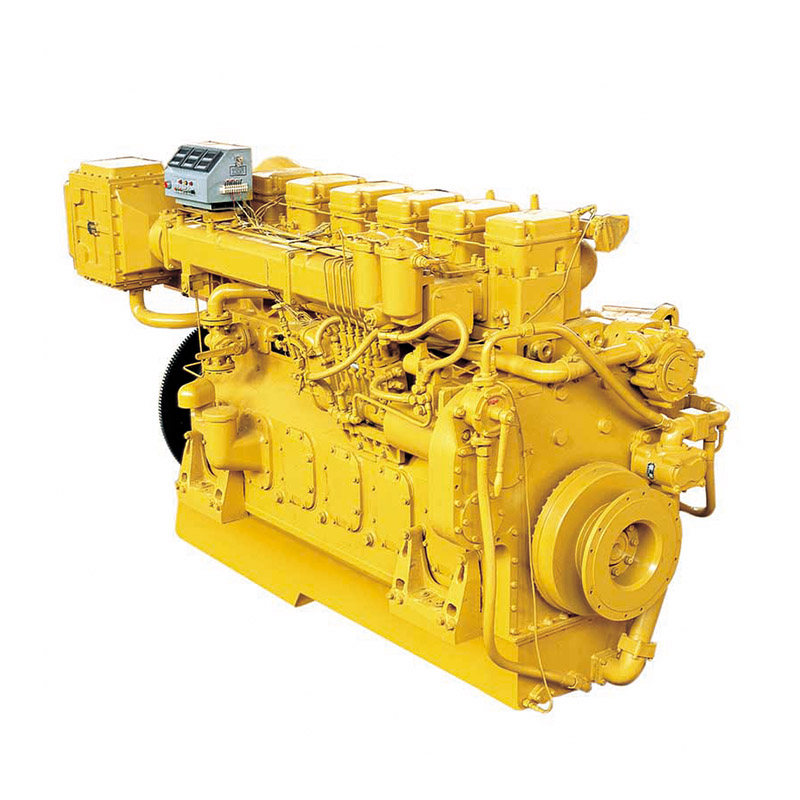

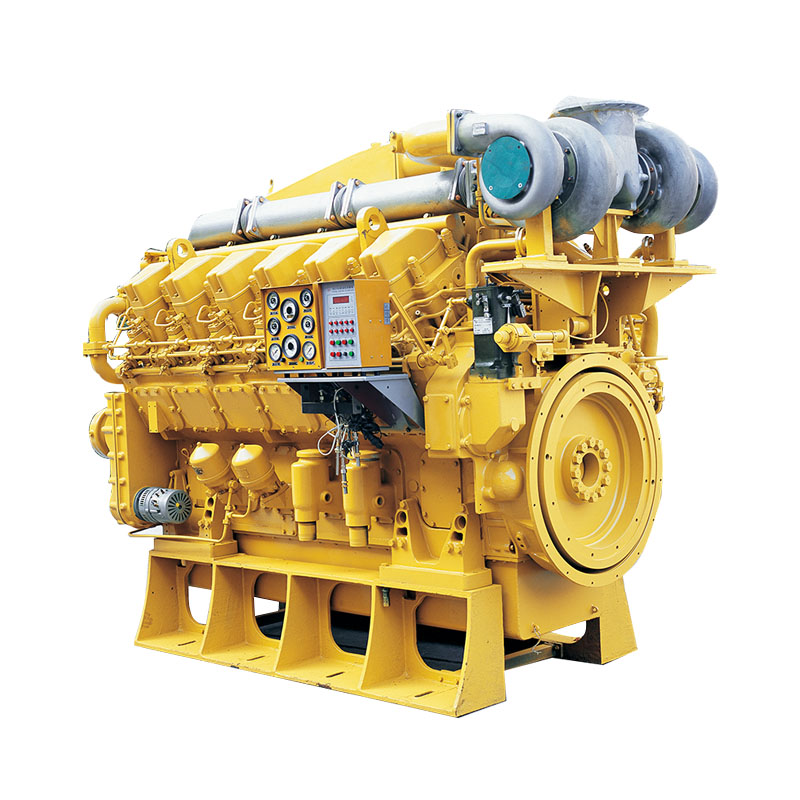

Series 2000 is based on the Z12V190BC1 diesel engine awarded with the national Gold Award according to the service conditions and special requirements of Marine engines, the shafting, lubricating system, cooling system, intake, and exhaust system and monitoring system have been improved comprehensively from the aspects of safety, reliability and service mathe CCS certification.intenance. The gearbox can be used to reduce the speed and load of transport ships and engineering ships. It can meet the requirements of gas and electricity double starting, remote operation, engine parallel, and so on. The products cover a wide range of power, can meet the needs of customers in different power segments, products have passed.
Model | Type | Cylinders & Arrangement | Cylinders bore,mm | Piston stroke,mm | Rated power,kw/hp | RPM,r/min | Total piston displacement,L | Fuel oil consumption rate,g/kW.h | Lub. oil consumption rate,kW.h | Dimension mm | Weight kg |
6190ZLC | Four stroke, pressurized intercooled, water-cooled, direct-injection combustor | 6 cylinders, in-line | 190 | 210 | 450/610 | 1450 | 35.73 | ≤204 | ≤1.2 | 2990×1243×1763 | 3960 |
6190ZLC-1 | 400/540 | 1200 | |||||||||
6190ZLC-2 | 330/450 | 1000 | |||||||||
6190ZLC-3 | 400/540 | 1300 | |||||||||
B6190ZLC | 450/610 | 1450 | 3000×1324×1820 | ||||||||
B6190ZLC-1 | 400/540 | 1200 | |||||||||
B6190ZLC-2 | 330/450 | 1000 | |||||||||
B6190ZLC-3 | 400/540 | 1300 | |||||||||
8190ZLC | 8 cylinders, in-line | 720/980 | 1450 | 47.63 | 3175×1220×2055 | 5200 | |||||
8190ZLC-1 | 600/816 | 1200 | |||||||||
8190ZLC-2 | 500/680 | 1000 | |||||||||
8190ZLC-3 | 650/884 | 1300 | |||||||||
C6190ZLC | 6 cylinders, in-line | 230 | 550/748 | 1350 | 39.13 | ≤1.0 | 2995×1133×1754 | 3960 | |||
C6190ZLC-1 | 490/667 | 1200 | |||||||||
C6190ZLC-2 | 400/544 | 1000 | |||||||||
C6190ZLC-3 | 530/721 | 1300 | |||||||||
C8190ZLC | 8 cylinders, in-line | 540/735 | 1000 | 52.17 | 3180X1220X2055 | 5200 | |||||
C8190ZLC-1 | 650/884 | 1200 | |||||||||
C8190ZLC-2 | 700/952 | 1300 | |||||||||
C8190ZLC-3 | 735/1000 | 1350 | |||||||||
S6190ZLC-1 | 6 cylinders, in-line | 275 | 900/1225 | 1200 | 46.78 | ≤195 | ≤1.0 | 3144×1571×2246 | 7200 | ||
S6190ZLC-2 | 750/1020 | 1000 | |||||||||
S6190ZLC-4 | 675/918 | 900 | |||||||||
S6190ZLC-5 | 825/1122 | 1100 | |||||||||
S6190ZLC-7 | 535/728 | 750 | |||||||||
AS6190ZLC-2 | 1000/1361 | 1200 | 3440×1405×2190 | 8200 | |||||||
S8190ZLC-1 | 8 cylinders, in-line | 1200/1633 | 1200 | 62.38 | ≤195 | 3744X1571X2246 | 8500 | ||||
S8190ZLC-2 | 1000/1361 | 1000 | |||||||||
S8190ZLC-4 | 900/1245 | 900 | |||||||||
S8190ZLC-5 | 1100/1497 | 1100 | |||||||||
S8190ZLC-7 | 750/1020 | 750 | |||||||||
AS8190ZLC-2 | Electronically controlled injection | 1320/1796 | 1200 | 4040X1410X2190 | |||||||
G6190ZLC | Four stroke, pressurized intercooled, water-cooled, direct-injection combustor | 6 cylinders, in-line | 210 | 540/735 | 1450 | 35.37 | ≤204 | ≤1.2 | 2995×1259×1754 | 4500 | |
G6190ZLC-1 | 450/612 | 1200 | |||||||||
G6190ZLC-2 | 380/517 | 1000 | |||||||||
G6190ZLC-3 | 480/653 | 1300 | |||||||||
G12V190ZLC1 | 12 cylinders V type | 1000/1360 | 1450 | 71.45 | ≤209 | ≤1.6 | 3744.5×1571×2246 | 5800 | |||
G12V190ZLC-1 | 750/1020 | 1200 | |||||||||
G12V190ZLC-2 | 620/844 | 1000 | |||||||||
G12V190ZLC-3 | 810/1102 | 1300 |
In cooperation with the WOODWARD Company of the United States, A kind of pre-supercharger hybrid gas engine has been developed by using the internationally advanced external gas mixing method, advanced electronic control technology, and rarefied combustion control strategy, with high-cost performance and good control and reliability. This series of products have been sold well at home and abroad since they were put on the market in 2005, and have achieved good benefits for customers.
Engine model | Cylinders & Arrangement | Cylinder bore,mm | Piston stroke,mm | Rated power,kW | RPM,r/min | Total Piston Displacement,L | Heat consumption rate kJ/kW.h | Lub. Oil Consumption Rate g/kW.h | Start mode |
G12V190ZLDZ-2 | 12 cylinders V type | 190 | 210 | 550 | 1000 | 71.5 | ≤11000 | ≤0.8 | Electrical Starting |
G12V190ZLDZ2-2 | 600 | ||||||||
G12V190ZLDZ4-2 | 750 | ||||||||
H16V190ZLZ-2 | 16 cylinders V type | 215 | 1200 | 97.53 | ≤9500 | ≤0.6 | Electric/ Air starting | ||
L20V190ZLZ-2 | 20 cylinders V type | 255 | 1600 | 144.6 | ≤9000 | ≤0.6 | Air startin | ||
Genset model | Engine model | Alternator model | Power kW | RPM,r/min | Rated voltageV | Frequency Hz | Power factor | Dimension mm | Weight kg |
500GF-N | G12V190ZLDZ-2 | 1FC Series | 500 | 1000 | 400 | 50 | 0.8 | 6195×2200×2751 | 13800 |
600GF-N | G12V190ZLDZ2-2 | 600 | 1000 | 400 | 6195×2200×2751 | 13800 | |||
700GF1-Z | G12V190ZLDZ4-2 | JFG Series | 700 | 1000 | 10500 | 6195×2200×2751 | 13800 | ||
1000GF-Z | H16V190ZLZ-2 | 1FC Series | 1000 | 1000 | 400 | 5930×2180×2545 | 21000 | ||
1000GF9-Z | H16V190ZLZ-2 | JFG Series | 1000 | 1000 | 10500 | 6198×2180×2545 | 23000 | ||
1500GF-Z | L20V190ZLZ-2 | JFG Series | 1500 | 1000 | 6300 | 9093×3786×2786 | 28000 |

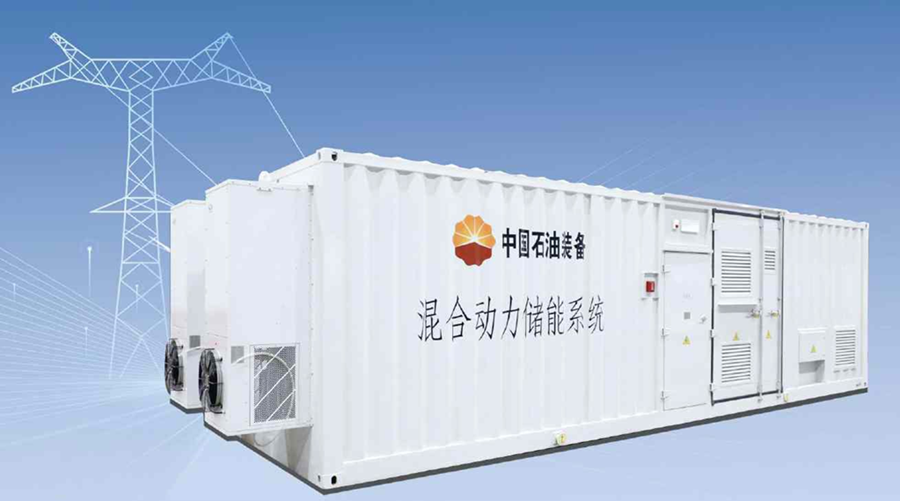

Product Introduction

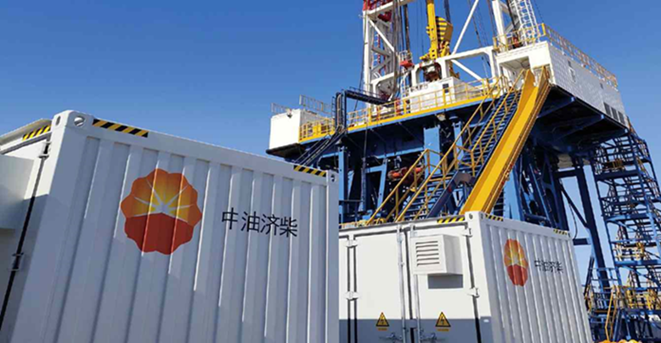

The working conditions of energy storage system at the drilling site include high-speed lifting of traveling block, low-speed tripping, lifting of mud pump, high-speed lifting of drilling tool, lowering of drilling tool, logging for drill-down, logging, casing running, well cementation, drilling, picking up stands and so on. The performance matching test of energy storage inverter is carried out under the condition of high-speed lifting of traveling block with the greatest power impact, which can adapt to the impact of heavy load of the winch and provide power supply guarantee for complex drilling process. The mobile energy storage system for drilling mainly consists of liquid-cooled battery compartment, energy storage inverter, transformer, and EMS energy management system.
Technical Parameter
Name | Technical parameters | Name | Technical parameters |
Capacity of mobile energy storage compartment | 3.34MWh | Charging and discharging power of energy storage inverter skid | 3.45MW |
Charging and discharging power of energy storage compartment | 1.67MW | ||
Protection level | IP54 | Protection level | IP54 |
Cooling method | Liquid cooling | Cooling method | Air cooling |
Fire protection scheme | Perfluorohexanone | Operating ambient temperature | -35°C〜+55°C |
Dimension (length * width * height) | 5200mm*2600mm*2900mm | Dimension (length * width * height) | 6200mm*3000mm*3000mm |
Weight | 33T | Weight | 20T |
Applicable scenarios
It can be widely used in drilling with electric drilling rig, workover, electric drive fracturing, pressure drive and other operation scenarios, as well as the energy storage projects that need to be matched on the grid side.
In cooperation with the WOODWARD Company of the United States, A kind of pre-mixed gas engine with a supercharger is developed by utilizing the internationally advanced external gas mixing method, advanced electronic control technology, and rarefied combustion control strategy. This series of products has been put on the market nearly a thousand units, cost-effective, with good control and reliability.
Engine model | Cylinders & Arrangement | Cylinder Bore,mm | Piston stroke,mm | Rated power,kW | RPM,r/min | Total piston displacement,L | Heat consumption rate kJ/kW.h | Lub. oil consumption rate g/kW.h | Start method |
G12V190ZLDT-2 | 12 cylinders V type | 190 | 210 | 550 | 1000 | 71.5 | ≤11000 | ≤1.0 | Electric start |
G12V190ZLDT-1 | 640 | 1200 | |||||||
Genset Model | Engine model | Alternator Model | Power kW | voltage | RPM,r/min | Frequency Hz | Power factor | Dimension mm | Weight kg |
500GF-T3 | G12V190ZLDT-2 | 1FC | 500 | 400 | 1000 | 50 | 0.8 | 5925×2184×2870 | 13800 |
500GF-T4 | G12V190ZLDT-1 | 500 | 480 | 1200 | 60 | 5925×2184×2870 | 13800 |

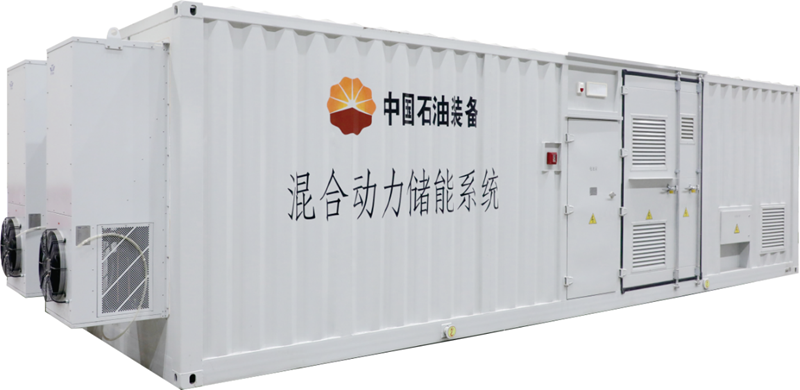

Product Introduction
Hybrid microgrid system is a system composed of generator set driven by internal combustion engine, battery pack, supercapacitor, and control system. It is mainly used to provide the required power source through the generator set driven by internal combustion engine, store the electric energy generated by the power source through the battery pack and output the electric energy required for operation alone or together with the power source, and stabilize the microgrid voltage through quickly charging and discharging of the energy storage system to cope with the impact load of the island power station, so as to reduce the configuration capacity of the power unit and improve the energy utilization.
Technical Parameter
Name | Technical parameters |
Rated capacity of supercapacitor | 600kW |
Capacity of lithium iron phosphate battery | 600kW/691kWh |
Rated voltage | 0.6kV |
Compensation time | 0〜15s |
Load-side voltage imbalance | ≤4% |
Response time of whole machine | ≤20ms |
Total voltage distortion rate | ≤4% |
Applicable Scenarios
Large load range and frequency modulation of operating condition of frequent frequency variation during power generation, transmission, distribution and utilization.

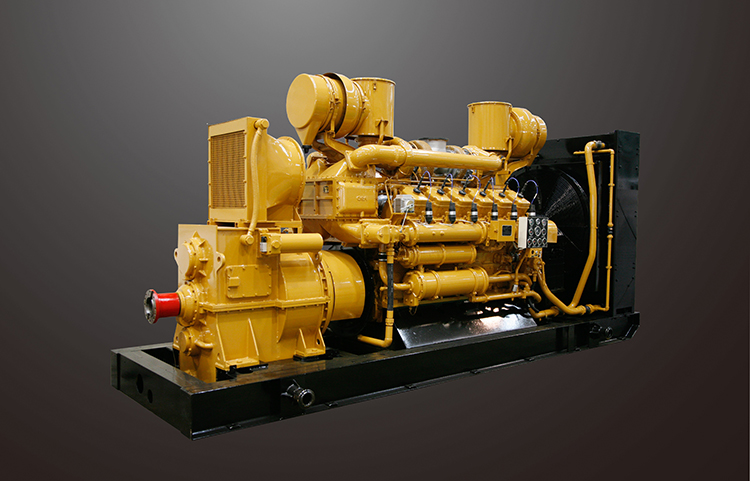

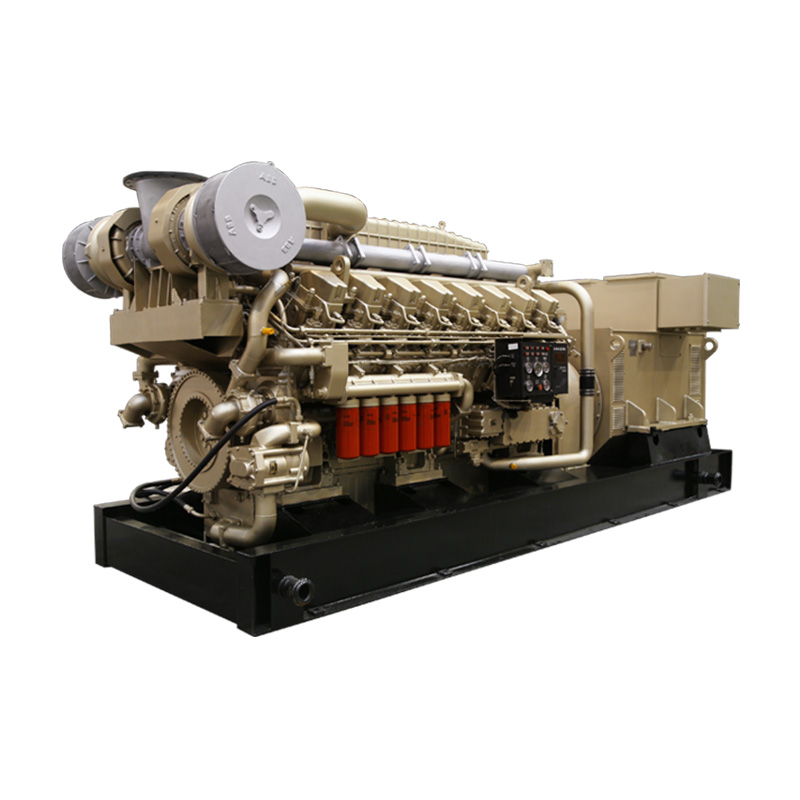

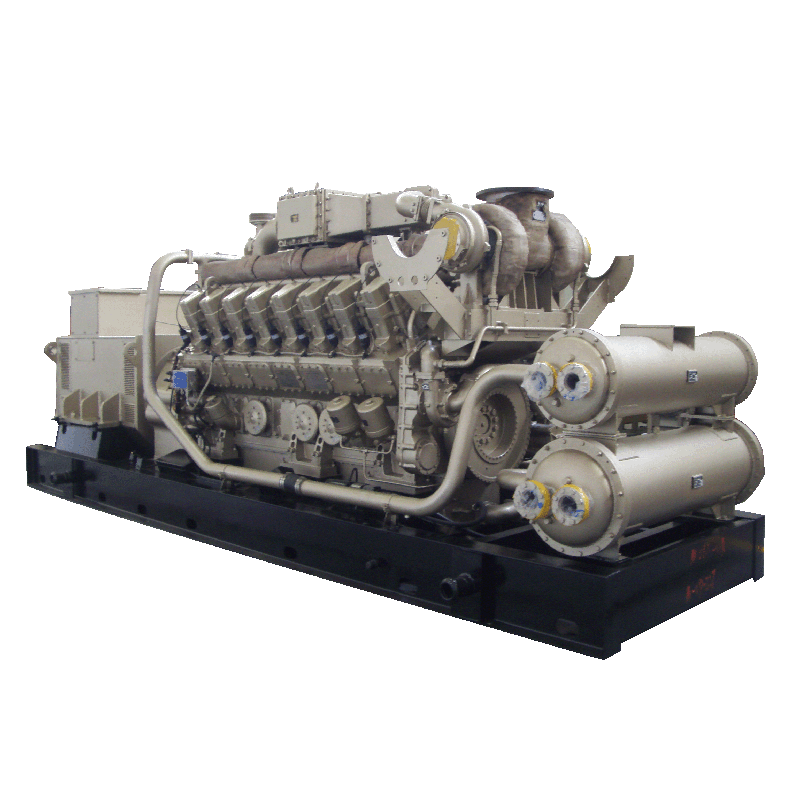

CNPC Chai Gas (coal bed methane) power generation products were first used in the Jincheng area in 2003. Since 2005, the company has increased r&d investment in coal mine gas power generation products, paid attention to communication and cooperation with relevant research institutes of coal mines, and established close ties with China Coal Bed Methane Society, Henan University of Science and Technology, Fushun Coal Branch General Institute and other coal design institutes. Have research and development of coal mine gas proprietary models 8 kinds of high and low concentrations of power to cover 200-1500 kw, adopting advanced gas machine control technology in the world, and the thin combustion theory, in view of the domestic gas drainage discharge process, the characteristics of the volatile gas concentration, through the reasonable matching of the air intake system, makes the gas unit to adapt to the performance of the broader, can burn methane concentration from 8% to 60%, in the range of 3 to 15 kpa pressure of the gas, its performance, fuel economy, safety and reliability have reached the international advanced level. It is distributed in 13 major coal-producing areas, and more than 500 sets of gas (CBM) equipment have been sold in the Shanxi market alone.
Engine Model | Cylinders & Arrangement | Cylinder bore,mm | Piston Bore,mm | Rated Power,kW | RPM,r/min | Total Piston Displacement,L | Heat consumption rate kJ/kW.h | Lub. oil consumption rated g/kW.h | Staring Mode |
G12V190ZLW-2 | 12 cylinders V type | 190 | 210 | 550 | 1000 | 71.5 | ≤11000 | ≤0.8 | Electrical starting |
H16V190ZLW-2 | 16 cylinders V type | 215 | 1200 | 97.53 | ≤9500 | ≤0.6 | Electrical starting/Air Starting | ||
G12V190ZLWD4-2 | 12 cylinders V type | 210 | 660 | 71.5 | ≤11000 | ≤0.8 | Electrical starting | ||
H16V190ZLWD-2 | 16 cylinders V type | 215 | 1200 | 97.53 | ≤9500 | ≤0.6 | Electrical starting/Air Starting | ||
L20V190ZLWd-2 | 20 cylinders V type | 255 | 1600 | 144.6 | ≤9000 | ≤0.6 | Air Starting | ||
Model | Engine model | Alternor model | Power kW | RPM,r/min | Rated Voltage V | Frequency Hz | Power factor | Dimension mm | Weight kg |
500GF-WK | G12V190ZLDW-2 | 1FC Series | 500 | 1000 | 400 | 50 | 0.8 | 5120×2040×2776 | 13800 |
1000GF-W | H16V190ZLW-2 | 1FC Series | 1000 | 400 | 6760×2180×2540 | 25000 | |||
1000GF9-WK | H16V190ZLW-2 | JFG Series | 1000 | 10500 | 6760×2180×2540 | 25000 | |||
500GF-WK2 | G12V190ZLWD2-2 | 1FC Series | 500 | 400 | 5120×2200×2778 | 13800 | |||
600GF9-WDK | G12V190ZLWD4-2 | JFG Series | 600 | 10500 | 5120×2200×2778 | 13800 | |||
1000GF-WK2 | H16V190ZLWD1-2 | 1FC Series | 1000 | 400 | 6760×2180×2540 | 25000 | |||
1000GF9-WK1 | H16V190ZLWD1-2 | JFG Series | 1000 | 10500 | 6760×2180×2540 | 25000 | |||
1500GF-WD | L20V190ZLWd-2 | 1500 | 6300 | 9093×3786×2786 | 28000 |
In recent years, with the improvement and promotion of series H16V Genset, The market share of Jichai gas generator sets in the gas power generation market, especially in Shanxi, has been increasing year by year, and the market share of 1000kW low-concentration gas generator sets has reached more than 90%. However, At present, Jichai does not meet the market requirements within the power range of 1000kW~2000kW. It is necessary to develop 190 series gas generator sets covering the power segment of 1000kW~2000kW, so as to maintain the cost advantage over foreign Genset, at the meantime expand the power coverage, continue to improve the competitiveness of 190 series gas generator sets and maintain the competitive advantage.

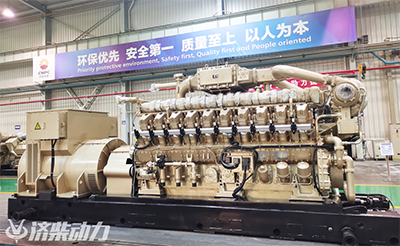

The single power of the long-stroke 20V190 gas engine covers the power segment of 1000kW~2000kW, and the gas type can take into account natural gas, gas, and biogas, which has a broad market demand prospect.
Model | Cylinders&Arrangement | Cylinders bore,mm | Piston stroke,mm | Rated power,kW | RPM,r/min | Total piston displacement,L | Heat Consumption RatekJ/kW.h | Lub. oil consumption g/kW.h |
L20V190ZLT-2 | 20 cylinders V type | 190 | 255 | 2200 | 1000 | 144.6 | ≤9000 | ≤1.0 |

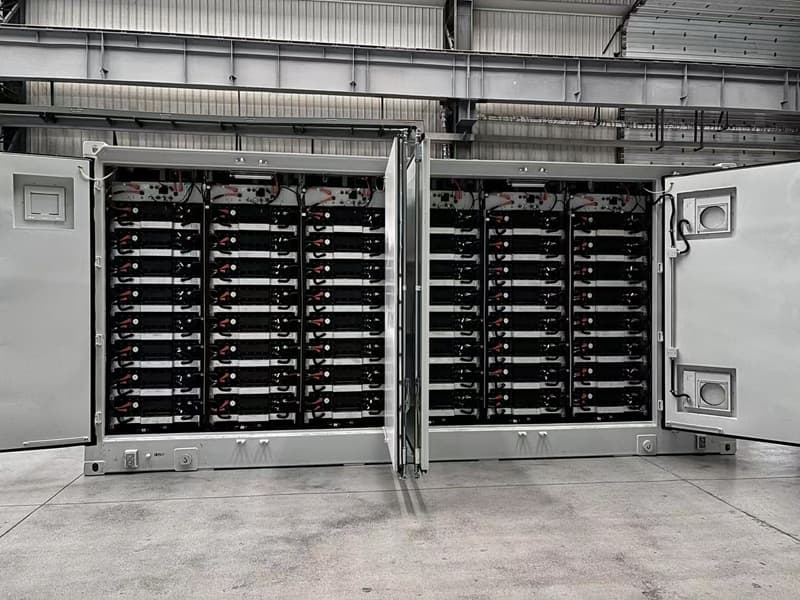

Product Introduction

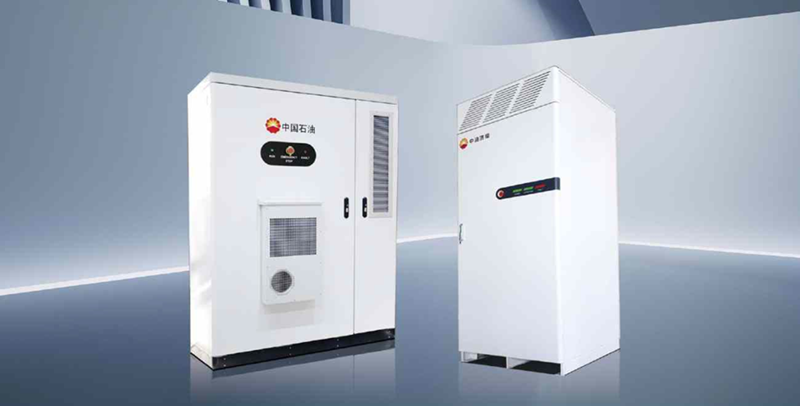

The standardized, distributed and integrated energy storage cabinet of CNPC Jichai Power Company Limited is an energy storage product that integrates lithium iron phosphate battery, BMS, energy storage converter, EMS, grid-connected and off-grid switching unit, power distribution unit, thermal management system, firefighting system and emergency system, which can store low-cost electric energy in power grid during valley period and redundant electric energy generated by PV, and release it during peak period to help enterprises reduce electricity costs. At the same time, the distributed energy storage cabinet also has the power regulation function, which can stabilize the voltage and frequency of the power grid, improve the power quality and ensure the normal operation of the equipment. This product features advanced energy storage technology and high energy conversion efficiency, can effectively reduce the energy consumption. The modular design makes the product easy to expand and upgrade, and can be customized according to the user needs. In addition, the distributed energy storage cabinet is equipped with an intelligent monitoring and management system, which can monitor the operating state of the energy storage system in real time, implement remote control and management, and ensure the safe and stable operation of the system.
Technical Parameter
AC side | Rated power (kW) | 100 | 100 | 125 | 200 | 215 |
Rated voltage (V) | 400 | 400 | 400 | 690 | 690 | |
DC side | Nominal capacity (kWh) | 215 | 232 | 261 | 372 | 418 |
Cell type | LFP280Ah | LFP280Ah | LFP314Ah | LFP280Ah | LFP314Ah | |
Voltage range (V) | 600〜876 | 650〜949 | 650〜949 | 1040〜1518.4 | 1040〜1518.4 | |
Nominal voltage (V) | 768 | 832 | 832 | 1331.2 | 1331.2 | |
Charging/discharging current (A) | 140 | 140 | 157 | 140 | 157 | |
Weight (Kg) | 2000 | 2000 | 2200 | 3800 | 3800 | |
Dimensions (mm,L*W*H) | 1000*1600*2200/1000*1300*2450 | 1000*1300*2450 | 1000*1300*2450 | 1500*1300*2300 | 1500*1300*2300 | |
Charging temperature (°C) | 0〜50 | 0〜50 | 0〜50 | 0〜50 | 0〜50 | |
Discharging temperature (°C) | -20〜50 | -20〜50 | -20〜50 | -20〜50 | -20〜50 | |
Cooling method | Air/liquid cooling | Liquid cooling | Liquid cooling | Liquid cooling | Liquid cooling | |
IP grade | IP54/IP55 | IP55 | IP55 | IP55 | IP55 |
Applicable Scenarios
This product can be widely used in factories, shopping malls, hotels, hospitals and other scenes, providing services such as standby power, peak shaving and valley filling, and power regulation.

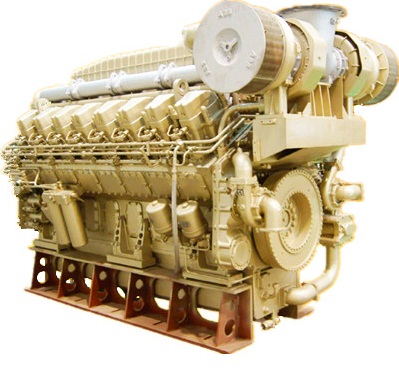

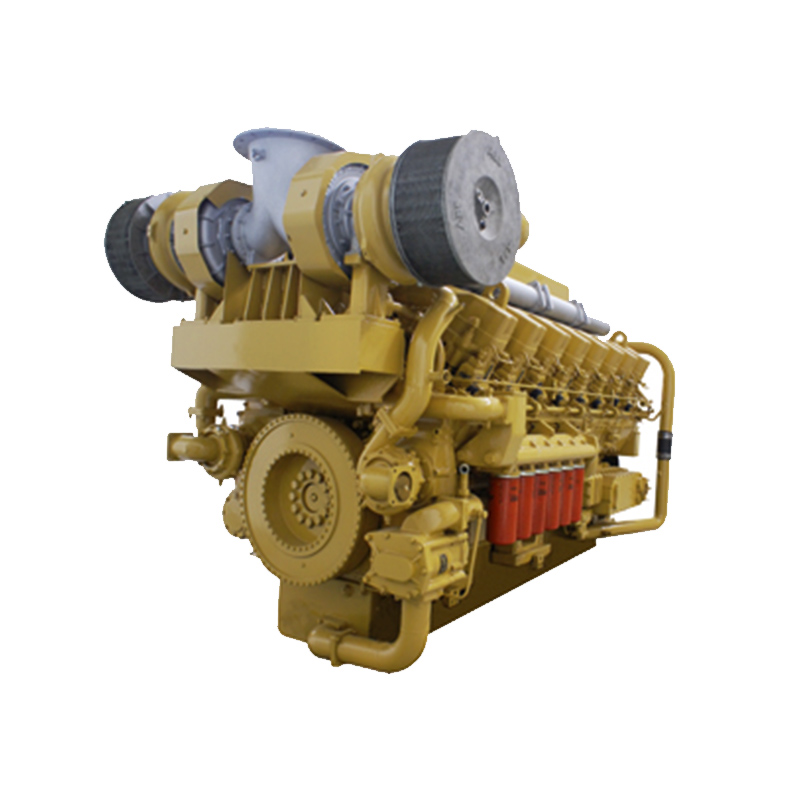

Series 6000 land-used diesel engine is developed by Jichai with Austria AVL company and domestic well-known colleges and universities, research institutes, and by means of the latest development of internal combustion engine, through the computer-aided design, simulation, finite element analysis and research on the combustion process, the crankshaft torsional vibration of engine and turbocharger matching, into the exhaust system on the basis of the simulation, optimization of design and development. The advanced technology and mature parts and components of the current international high-power internal combustion engine industry are adopted, so that the engine can not only expand the power of the original 190 series diesel engine, but also make great progress in improving the average effective pressure, reducing fuel consumption and emission, and improving the reliability and safety of use.
Description | Engine model | Injection system | Speed adjustment mode | Cylinder&Arrangement | Cylinders Bore,mm | Piston Stroke,mm |
Engine with fan and radiator | H12V190PZL | Monoblock pump | Electronic Speed Governor | 12 cylinders,V tyoe | 190 | 215 |
H12V190PZL-1 | ||||||
H12V190PZL-2 | ||||||
Description | Genset model | Rated power kw | Rotation speed r/min | Engine model | Hydraulic transmission coupler/Torque Converter Model | Height of center |
Hydraulic transmission coupling set | CO2200/40 | 2200 | 1500 | H16V190PZL | YOTFJ875 | 760 |
Series 6000 diesel engines are developed by Jichai with Austria AVL company and domestic well-known colleges and universities, research institutes cooperation, by means of the latest development of internal combustion engine, through the computer-aided design, simulation, finite element analysis research of engine combustion processes, such as crankshaft torsional vibration, turbocharger matching, inlet and exhaust system on the basis of the simulation, optimization of design and development. The advanced technology and mature spare parts of the international high-power internal combustion engine industry are adopted, so that the engine has made great progress in increasing the average effective pressure, reducing fuel consumption and emission, and improving the reliability and safety while expanding the power of the original 190 series diesel engine. Widely used in oil drilling, Marine power, offshore drilling platform, power generation, and other fields. All products have passed CCS certification.
Model | Type | Cylinders & Arrangement | Cylinders bore,mm | Piston stroke,mm | Rated power,kw/hp | RPM,r/min | Total piston displacement,L | Fuel oil consumption rate,g/kW.h | Lub. oil consumption rate,kW.h | Dimension mm | Weight kg |
H8L190ZLC | Four-stroke, pressurized intercooler, water-cooled, direct-injection combustor | 8 cylinders , in-line | 190 | 215 | 1000/1361 | 1450 | 48.77 | ≤200 | ≤1.0 | 3349×1416×2225 | 8200 |
H8L190ZLC-1 | 830/1129 | 1200 | |||||||||
H8L190ZLC-2 | 700/952 | 1000 | |||||||||
H8L190ZLC-3 | 900/1245 | 1300 | |||||||||
H12V190ZLC | 12 cylinders V type | 1680/2286 | 1450 | 73.15 | ≤196 | ≤0.8 | 3212×1597×2211 | 9500 | |||
H12V190ZLC-2 | 1160/1578 | 1000 | |||||||||
H12V190ZLC-1 | 1390/1891 | 1200 | |||||||||
H12V190ZLC-3 | 1500/2041 | 1300 | |||||||||
H16V190ZLC | 16 cylinders V type | 2200/2993 | 1500 | 97.53 | ≤196 | ≤0.8 | 3530×1880×2150 | 13000 | |||
H16V190ZLC-1 | 1820/2476 | 1200 | |||||||||
H16V190ZLC-2 | 1520/2068 | 1000 | |||||||||
H16V190ZLC-3 | 1980/2694 | 1300 |

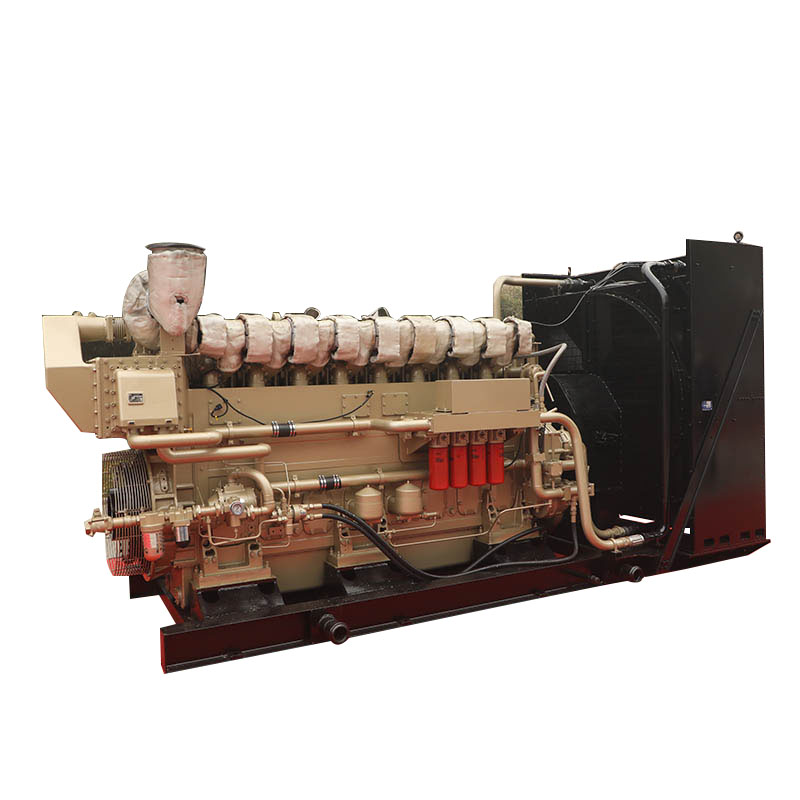

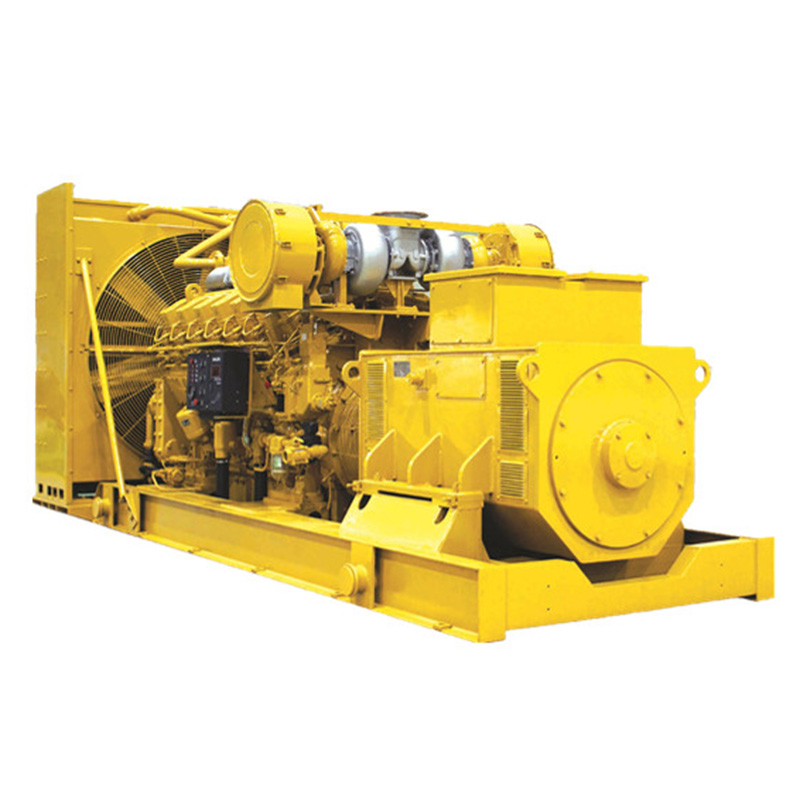

Series 3000 land-used diesel engine is a new generation diesel engine developed by Jichai to meet the demand of the developing petroleum industry and improve the advancement and reliability of our country's drilling equipment. This diesel engine is developed on the basis of 6000 series diesel engines, absorbing foreign advanced structure and technology, and its dynamic and economic indexes have been greatly improved, and its main performance indexes have reached or approached the international advanced level. Series 3000 land-used diesel engines can meet the demand for power of mechanical drilling rigs and electric drilling rigs of 4000 to 7000 meters. Can be installed in the same chassis with the torque converter, coupling set, used to drive drilling rigs or mud pumps. It can also be used to match the power station composed of single and double supporting generators and the power of a fire pump and flood pump.
Engine model | Fuel injection system | Cylinders & Arrangement | Cylinder bore,mm | Piston stroke,mm | Power factor,kW | RPM,r/min | Total piston displacement,L | Fuel Consumption Rate,g/kW.h | Lub. oil comsumption,g/kW.h |
A12V190ZL | Four-stroke, pressurized intercooler, water-cooled, direct-injection combustor | 12 cylinders V type | 190 | 215 | 1200 | 1080 | 73.15 | ≤205 | ≤1.0 |
A12V190ZL-1 | 12 cylinders V type | 1000 | 900 | 73.15 | ≤205 | ≤1.0 | |||
A12V190ZL-2 | 12 cylinders V type | 900 | 810 | 73.15 | ≤205 | ≤1.0 | |||
A12V190ZL-3 | 12 cylinders V type | 1100 | 990 | 73.15 | ≤205 | ≤1.0 | |||
B12V190ZL | 12 cylinders V type | 1320 | 1200 | 73.15 | ≤202 | ≤1.0 | |||
B12V190ZL-1 | 12 cylinders V type | 1160 | 1060 | 73.15 | ≤202 | ≤1.0 | |||
B12V190ZL-2 | 12 cylinders V type | 960 | 870 | 73.15 | ≤202 | ≤1.0 | |||
B12V190ZL-3 | 12 cylinders V type | 1210 | 1100 | 73.15 | ≤202 | ≤1.0 | |||
BH12V190ZL | 12 cylinders V type | 1360 | 1235 | 73.15 | ≤202 | ≤1.0 | |||
Genset Model | Engine model | Alternator model | Power kW | RPM,r/min | Voltage V | Frequency Hz | Power Factor | Genset Dimension mm | Weight kg |
800GF5 | A12V190ZL-2 | IFC series | 800 | 1000 | 400/6300/10500 | 50 | 0.8 | 6410×2252×2739 | 17200 |
1000GF2 | A12V190ZLD1 | 1000 | 1500 | 6250×2250×2739 | 19300 | ||||
1100GFZ | A12V190ZLD3 | 1100 | 1500 | 19300 | |||||
1200GF | BH12V190ZLD | 1200 | 1500 | 600 | 6381×2200×2636 | 17200 |

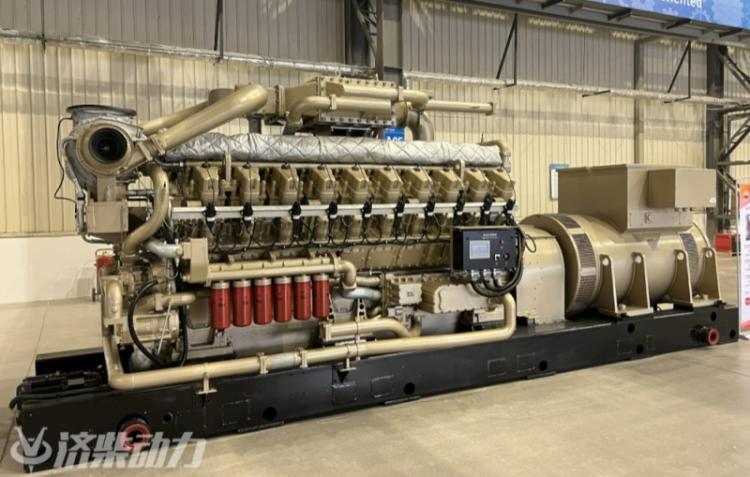

In recent years, with the improvement and promotion of H16V series gensets, The market share of Jichai gas generator sets in the gas power generation market, especially in Shanxi, has been increasing year by year, and the market share of 1000kW low-concentration gas generator sets has reached more than 90%. However, At present, Jichai does not meet the market requirements within the power range of 1000kW~2000kW. It is necessary to develop 190 series gas generator sets covering the power segment of 1000kW~2000kW, so as to maintain the cost advantage over foreign gensets, expand the power coverage, continue to improve the competitiveness of 190 series gas generator sets and maintain the competitive advantage of providing firewood.
The single power of the long-stroke 20V190 gas engine covers the power segment of 1000kW~2000kW, and the gas type can take into account natural gas, gas and biogas, which has a broad market demand prospect.
Engine model | Cylinders & Arrangement | Cylinder Bore,mm | Piston stroke,mm | Rated power,kW | RPM,r/min | Total piston displacement,L | Heat consumption ratekJ/kW.h | Lub. oil consumption rate g/kW.h | Start method |
L12V200ZLT-2 | 12 cylinders V type | 200 | 255 | 1320 | 1000 | 96.1 | ≤8850 | ≤0.6 | DC24V Electric |
L20V190ZLT-2 | 20 cylinders V type | 190 | 255 | 2200 | 1000 | 144.6 | ≤8600 | ≤0.6 | Gas |
Genset Model | Engine model | Alternator Model | Power kW | voltage | RPM,r/min | Frequency Hz | Power factor | Dimension mm | Weight kg |
1200GF-T | L12V200ZLT-2 | GPL1200 | 1200 | 400/480/6300/10500/13800 | 1000 | 50/60 | 0.8 | 7900×2300×2800 | 20600 |
2000GF10-T | L20V190ZL | JFG Series | 2000 | 6300 | 1000 | 50 | 0.8 | 9093×3786×2786 | 28000 |
Series 6000 diesel engines are developed by Jichai with Austria AVL company and domestic well-known colleges and universities, research institutes, and by means of the latest development of internal combustion engine, with today's international big power internal combustion engine industry advanced technology and mature component products, make great progress in improving average effective pressure, reducing fuel consumption and improving reliability and safety while expanding the power of the original 190 series diesel engine. Widely used in oil drilling, Marine power, offshore drilling platform, power generation and other fields.
Genset model | Engine model | Alternator model | Power kW | RPM,r/min | Voltage V | Frequency Hz | Power factor | Dimension mm | Weight kg |
1500GF | H12V190ZL | JFG series | 1500 | 1500 | 400 | 50 | 0.8 | 7880×2869×3175 | 19100 |
2000GFZ6 | H16V190ZL | 1500 | 1500 | 10500 | 19500 | ||||
2000GFZ9 | H16V190ZL | 1500 | 1500 | 5930×2180×2421 | 17000 | ||||
1500GF2 | H16V190ZL-1 | IFC series | 1500 | 1200 | 480/13800 | 60 | 7880×2869×3175 | 19500 | |
1400GF | H16V190ZL-2 | 2000 | 1000 | 400/6300/10500 | 50 | 9060×2869×3175 | 24000 |
Series 6000 diesel engines is developed by Jichai incorporate with Austria AVL company and domestic well-known colleges and universities, research institutes cooperation, by means of the latest development of internal combustion engine, through the computer-aided design, simulation, finite element analysis research of engine combustion process, such as crankshaft torsional vibration, turbocharger matching, into the exhaust system on the basis of the simulation, optimization of design and development6000 series land diesel engine is a cooperation between Jichai and AVL of Austria as well as famous universities and research institutes in China,use the latest development methods for the internal combustion engine, designed and developed through computer-aided design, simulation calculation, finite element analysis and research on the engine combustion process, crankshaft torsional vibration, supercharger matching, intake, and exhaust system. The advanced technology and mature spare parts of the international high-power internal combustion engine industry are adopted, so that the engine has made great progress in increasing the average effective pressure, reducing fuel consumption and emission, and improving the reliability and safety while expanding the power of the original 190 series diesel engine. Widely used in oil drilling, Marine power, offshore drilling platform, power generation, and other fields.
Engine model | Fuel injection system | Cylinders & Arrangement | Cylinder bore,mm | Piston stroke,mm | Power KW | RPM,r/min | Total piston displacement,L | Fuel Consumption Rate,g/kW.h | Lub. oil comsumption,g/kW.h |
H12V190ZL | Four stroke, pressurized intercooled, water-cooled, direct-injection combustor | 12 cylinders V type | 190 | 215 | 1566 | 1500 | 73.15 | ≤200 | ≤1.0 |
H12V190ZL-1 | 12 cylinders V type | 1270 | 1200 | 73.15 | ≤200 | ≤1.0 | |||
H12V190ZL-2 | 12 cylinders V type | 1050 | 1000 | 73.15 | ≤200 | ≤1.0 | |||
H16V190ZL | 16 cylinders V type | 2180 | 1500 | 97.53 | ≤200 | ≤1.0 | |||
H16V190ZL-1 | 16 cylinders V type | 1745 | 1200 | 97.53 | ≤200 | ≤1.0 | |||
H16V190ZL-2 | 16 cylinders V type | 1455 | 1000 | 97.53 | ≤200 | ≤1.0 | |||
H16V190ZL-3 | 16 cylinders V type | 1870 | 1300 | 97.53 | ≤200 | ≤1.0 | |||
Genset Model | Engine model | Alternator model | Power kW | RPM,r/min | Voltage V | Frequency Hz | Power Factor | Genset Dimension mm | Weight kg |
1500GF | H12V190ZL | 1500 | 1500 | 400/6300/10500 | 50 | 0.8 | 7880×2869×3175 | 19100 | |
2000GFZ6 | H16V190ZL | JFG series | 1500 | 1500 | 10500 | 19500 | |||
2000GFZ9 | H16V190ZL | 1500 | 1500 | 5930×2180×2421 | 17000 | ||||
1500GF2 | H16V190ZL-1 | IFC series | 1500 | 1200 | 480/13800 | 60 | 7880×2869×3175 | 19500 | |
1400GF | H16V190ZL-2 | 2000 | 1000 | 400/6300/10500 | 50 | 9060×2869×3175 | 24000 |

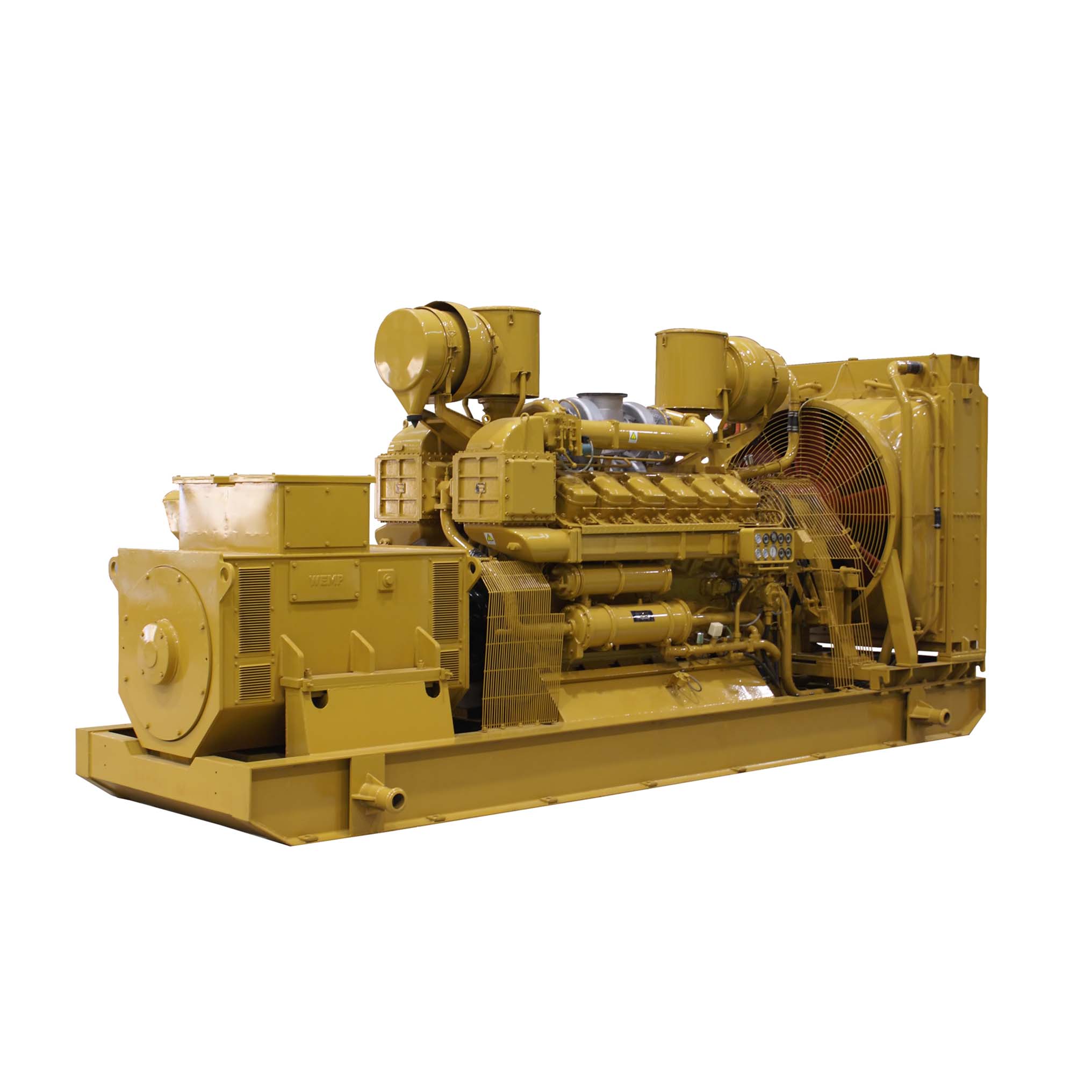

On the basis of Z12V190B diesel engine, the 2000 series diesel engine has been greatly improved in terms of improving the reliability, economic performance, and power performance of diesel engine, solving three leaks, appearance quality, and maintenance, etc., so as to better meet the power requirements of various oil drilling rigs, generator sets, and construction machinery. Series 2000 diesel engines can be matched with torque converter sets, coupler sets, and diesel generator sets for driving drilling rigs or mud pumps, as well as fire pumps and flood pumps, etc.
Engine model | Fuel injection system | Cylinders & Arrangement | Cylinder bore,mm | Piston stroke,mm | Power, kW | RPM,r/min | Total piston displacement,L | Fuel Consumption Rate,g/kW.h | Lub. oil comsumption,g/kW.h | Oil pan capacity,L |
G12V190ZL | Four-stroke, pressurized intercooler, water-cooled, direct-injection combustor | 12 cylinders V type | 190 | 210 | 990 | 900 | 71.45 | ≤209.4 | ≤1.6 | 200 |
G12V190ZL-1 | 13 cylinders V type | 814 | 740 | 71.45 | ≤209.4 | ≤1.6 | 200 | |||
G12V190ZL-2 | 14 cylinders V type | 660 | 600 | 71.45 | ≤209.4 | ≤1.6 | 200 | |||
G12V190ZL-3 | 15 cylinders V type | 940 | 850 | 71.45 | ≤209.4 | ≤1.6 | 200 | |||
AG12V190ZL | High - voltage common rail ECU electronic control jet | 16 cylinders V type | 990 | 900 | 71.45 | ≤202 | ≤1.6 | 200 | ||
AG12V190ZL-3 | 17 cylinders V type | 990 | 900 | 71.45 | ≤202 | ≤1.6 | 200 | |||
Genset Model | Engine model | Alternator model | Power kW | RPM,r/min | Voltage V | Frequency Hz | Power Factor | Genset Dimension mm | Weight kg | |
500GF17-2 | G12V190ZLD1-2 | IFC series | 500 | 1000 | 400/6300/10500 | 50 | 0.8 | 5925×2040×2678 | 5000 | |
700GF1-3 | G12V190ZLD1 | 700 | 1500 | 7000 | ||||||
800GF4-7 | G12V190ZLD2 | 800 | 1500 | 8000 | ||||||
800GFZ-1 | G12V190ZLD3 | 800 | 1500 | 8000 |

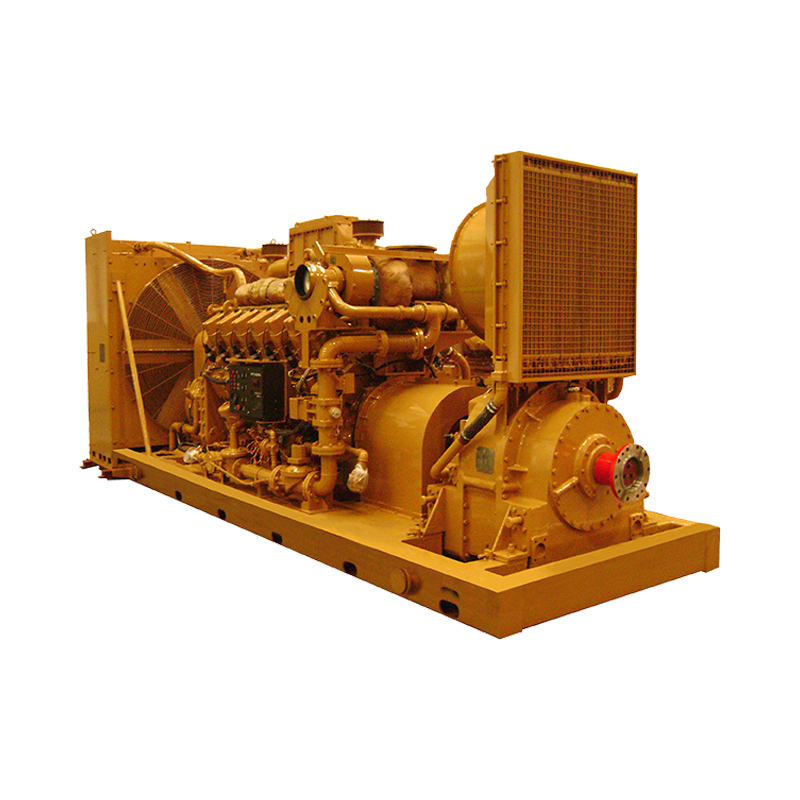

so as to better meet the power requirements of various oil drilling rigs, generator sets and construction machinery.2000 series diesel engine can be matched with torque converter engine set, Hydraulic transmission coupling set and diesel generator set, used for driving drilling rigs or mud pumps, and can also be matched with fire pump, flood pump, etc.
Description | Engine model | Injection system | Speed adjustment mode | Cylinders & Arrangement | Cylinders bore,mm | Piston Stroke,mm |
Engine with fan and radiator | G12V190PZL | Monolithic plunger type sundstrand pump | Mechanical speed control or electrical control | 12 cylinders ,V type | 190 | 210 |
G12V190PZL-1 | ||||||
G12V190PZL-2 | ||||||
G12V190PZL-3 | ||||||
AG12V190PZL | ECU electric control jet sundstrand pump | Electronic speed governor | ||||
AG12V190PZL-3 | ||||||
Description | Genset model | Rated power kw | Ratation speed r/min | Engine model | Hydraulic transmission coupler | Height of center |
Hydraulic transmission coupling set | G12V190PZL-1/O | 740 | 1200 | G12V190PZL-1 | YOZJ750 | 760 |
CO740F-1/22 | ||||||
G12V190PZL-3/O | 810 | 1300 | G12V190PZL-3 | |||
CO810-3/20 | ||||||
G12V190PZL-O | 900 | 1500 | G12V190PZL | |||
CO900F/33 | ||||||
Torque converter set | G12V190PZL-1/B | 620 | 1200 | G12V190PZL-1 | YBX900 | 760 |
G12V190PZL-3/B | 680 | 1300 | G12V190PZL-3 | |||
G12V190PZL/B | 760 | 1500 | G12V190PZL |
The electric motor coupling power unit is driven by electric motors and makes full use of power grid resources, which realizes the electric driving transformation of traditional mechanical drilling machine, reduces drilling cost, improves economic benefits, effectively reduces drilling noise, and has no exhaust emission, thus greatly improving the working environment. The unit is powered by a high-power electric motor, and users can make full use of cheap grid power resources to reduce the drilling cost by 30% ~ 45%. It is especially suitable for areas with long drilling cycles, complicated geological conditions, inconvenient transportation and concentrated well locations.
Technical parameter | Input RPM | 600~1500 r/min | |
Power ange | 300~1200 kW | ||
Rated slip | 3% | ||
Rated efficiency | ≥96% | ||
Reduction ratio | 1.1~3.3 | ||
Speed range | 1/3 |
This type of diesel engine is developed on the basis of 6000 series diesel engines, absorbing and learning from the advanced structure and technology of foreign diesel engines. Its dynamic and economic indexes have been greatly improved, and its main performance indexes have reached or approached the international advanced level. Series 3000 diesel engines can meet the demand for power of mechanical drilling machines and electric drilling machines of 4000 to 7000 meters. Can be installed in the same chassis with the torque converter, hydraulics transmission coupling set, used to drive drilling rigs or mud pumps. It can also be used to match the power station composed of single and double supporting generators and the power of a fire pump and flood pump.
Description | Engine model | Injection system | Speed adjustment mode | Cylinders & Arrangement | Cylinders bore,mm | Piston stroke,mm |
Engine with fan and radiator | A12V190PZL | Monoblock Pump | Hydraulic or Electro-hydraulic Governor | 12 cylinders ,V type | 190 | 215 |
A12V190PZL-1 | ||||||
A12V190PZL-2 | ||||||
A12V190PZL-3 | ||||||
B12V190PZL | ||||||
B12V190PZL-1 | ||||||
B12V190PZL-2 | ||||||
B12V190PZL-3 | ||||||
Description | Genset model | Rated power kw | Ratation speed r/min | Engine model | Hydraulic transmission coupler/Torque Converter Model | Height of center |
Hydraulic transmission coupling set | A12V190PZL-3/O | 1100 | 1300 | A12V190PZL-3 | YOZJ750 | 760 |
CO1100-3/15 | ||||||
A12V190PZL-O | 1200 | 1500 | A12V190PZL | |||
CO1200/20 | ||||||
A12V190PZL-1/O | 1000 | 1200 | A12V190PZL-1 | |||
CO1000F-1/24 | ||||||
BH12V190PZL-0 | 1360 | 1500 | BH12V190PZL | |||
CO1360F/33 | ||||||
BH12V190PZL-3/0 | 1100 | 1300 | BH12V190PZL-3 | |||
CO1100-3/20 | ||||||
Torque converter set | A12V190PZL-1/B | 810 | 1200 | A12V190PZL-1 | YBX760 | 930 |
A12V190PZL-3/B | 880 | 1300 | A12V190PZL-3 | |||
A12V190PZL/B | 1020 | 1500 | A12V190PZL | YBX720 |
This product is a new product with completely independent intellectual property rights developed by Jichai on the basis of 20 years of technical accumulation, historical background, and integration of advantageous resources in the industry. The products are integrated with a single-stage two-phase hydraulic torque converter, one-way clutch, locking clutch, hydraulic retarder, planetary transmission, power shift, ECU control, electro-hydraulic shift valve set, and other system units, which have the advantages of compact structure, easy operation, and reliable operation.
technical parameter | Rated output power | 410kW |
Rated input speed | 2100r/min | |
Input interface | SAE NO.1 | |
Force reclaimer interface | two,Top PTO、Side PTO | |
Hydraulic retarder/distributor box | selected |
Hydraulic Coupler widely used in the field of oil drilling and has become the standard configuration of the diesel coupling power units for oil drilling rigs.
Technical parameter | Input speed | 600~1500 r/min | |
Transfer power range | 600~1300 kW | ||
Rated slip | 3% | ||
Rated power | ≥96% | ||
Reduction ratio | 1.1~3.3(According to user form a complete set of circumstances specific determination) | ||
Characteristic | Independent air cooling | This type of hydraulic coupler adopts the same water-cooling system as the diesel engine, which is installed on the common chassis, easy to install and transport, safe and reliable to operate. | |
Combined water cooling | This type of hydraulic coupler adopts an independent fan cooling system for the ahead gearbox, which is suitable for the selection of all types of drilling rigs. |
Series 3000 marine engine is a kind of diesel engine with the character high supercharging, high power, low fuel consumption, high reliability, and long service life. In its design, it absorbs and draws lessons from the advanced structural technology of foreign diesel engines. The crankshaft, engine block, cylinder head, connecting rod, camshaft, and other main important parts are basically universal with 601 series diesel engines.t can also be regarded as an improved model in the application filed on the basis of 601 series diesel engine, whose dynamic performance and economic indexes have been greatly improved. The crankshaft structure with double-end output is adopted, and the connection mode of output end is designed according to the SAE standard. It can be equipped with gearbox sets and pump sets, which is suitable for the transport ship and engineering ship. All products have passed CCS certification.
Model | Type | Cylinders & Arrangement | Cylinders bore,mm | Piston stroke,mm | Rated power,kw/hp | RPM,r/min | Total piston displacement,L | Fuel oil consumption rate,g/kW.h | Lub. oil consumption rate,kW.h | Dimension mm | Weight kg |
A12V190ZLC | Four-stroke, pressurized intercooler, water-cooled, direct-injection combustor | 12 cylinders V type | 190 | 215 | 1200/1630 | 1500 | 73.15 | ≤205 | ≤1.0 | 2969×1907×2206 | 9300 |
A12V190ZLC1 | 1080/1470 | 1350 | |||||||||
A12V190ZLC-1 | 900/1225 | 1200 | |||||||||
A12V190ZLC-2 | 810/1100 | 1000 |
Series 4000 long-stroke diesel engine is designed and developed according to the current domestic and foreign internal combustion engine industry development situation, combining with Austria AVL simulation analysis software from Liszt, and combining with its own years of product research and development experience and cooperation with domestic universities and research institutions.
The dynamic performance, economic performance, reliable performance, and other indicators of the product have reached the international level, with the characteristics of compact shape, simple operation, and maintenance, high power index, it can match 50Hz and 60Hz frequency operated motor and meet various power needs.
Description | Engine model | Injection system | Speed adjustment mode | Cylinder&Arrangement | Cylinders bore,mm | Piston stroke,mm |
Engine with fan and radiator | BL12V190PZL-1 | Monoblock Pump | Hydraulic or Electro-hydraulic Governor | 12 cylinders,V type | 190 | 255 |
BL12V190PZL-2 | ||||||
BL12V190PZL-3 | ||||||
AL8190PZLG-1 | ECU Electric Control Monoblock Pump | Electronic speed governor | 8 cylinders L type | |||
AL8190PZLG-3 | ||||||
Description | Genset model | Rated power kw | Ratation speed r/min | Engine model | Hydraulic transmission coupler/Torque Converter Model | Height of center |
Hydraulic transmission coupling set | BL12V190PZL-3/O | 1300 | 1300 | BL12V190PZL-3 | YOZJ875 | 760 |
CO1300-3/20 |
