In recent years, with the improvement and promotion of series H16V Genset, The market share of Jichai gas generator sets in the gas power generation market, especially in Shanxi, has been increasing year by year, and the market share of 1000kW low-concentration gas generator sets has reached more than 90%. However, At present, Jichai does not meet the market requirements within the power range of 1000kW~2000kW. It is necessary to develop 190 series gas generator sets covering the power segment of 1000kW~2000kW, so as to maintain the cost advantage over foreign Genset, at the meantime expand the power coverage, continue to improve the competitiveness of 190 series gas generator sets and maintain the competitive advantage.

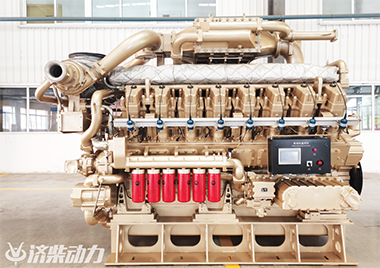

The single power of the long-stroke 20V190 gas engine covers the power segment of 1000kW~2000kW, and the gas type can take into account natural gas, gas, and biogas, which has a broad market demand prospect.

In recent years, with the improvement and promotion of H16V series gensets, The market share of Jichai gas generator sets in the gas power generation market, especially in Shanxi, has been increasing year by year, and the market share of 1000kW low-concentration gas generator sets has reached more than 90%. However, At present, Jichai does not meet the market requirements within the power range of 1000kW~2000kW. It is necessary to develop 190 series gas generator sets covering the power segment of 1000kW~2000kW, so as to maintain the cost advantage over foreign gensets, expand the power coverage, continue to improve the competitiveness of 190 series gas generator sets and maintain the competitive advantage of providing firewood.

The single power of the long-stroke 20V190 gas engine covers the power segment of 1000kW~2000kW, and the gas type can take into account natural gas, gas and biogas, which has a broad market demand prospect.

In cooperation with the WOODWARD Company of the United States, A kind of pre-supercharger hybrid gas engine has been developed by using the internationally advanced external gas mixing method, advanced electronic control technology, and rarefied combustion control strategy, with high-cost performance and good control and reliability. This series of products have been sold well at home and abroad since they were put on the market in 2005, and have achieved good benefits for customers.

Product Introduction

Hybrid microgrid system is a system composed of generator set driven by internal combustion engine, battery pack, supercapacitor, and control system. It is mainly used to provide the required power source through the generator set driven by internal combustion engine, store the electric energy generated by the power source through the battery pack and output the electric energy required for operation alone or together with the power source, and stabilize the microgrid voltage through quickly charging and discharging of the energy storage system to cope with the impact load of the island power station, so as to reduce the configuration capacity of the power unit and improve the energy utilization.

Technical Parameter

Applicable Scenarios

Large load range and frequency modulation of operating condition of frequent frequency variation during power generation, transmission, distribution and utilization.

Functional description:

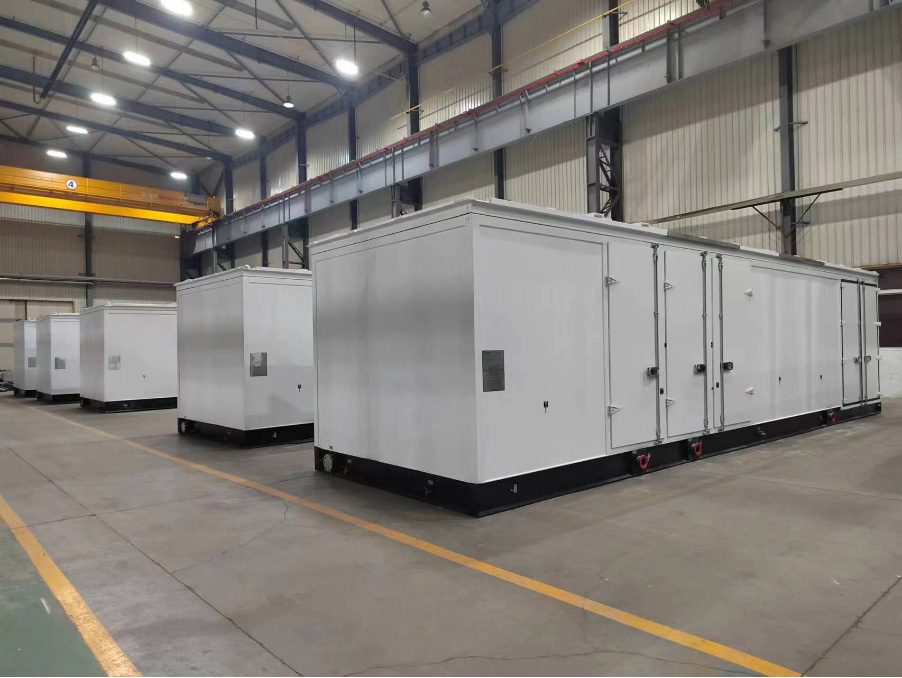

1)The container is equipped with a distribution box to provide power to all low-voltage loads in the engine room, such as horizontal radiator fans, control screens, lighting, exhaust (supply) fans (for horizontal distribution), chargers, electric heating (optional), oil pumps, electric heating (optional), and outdoor searchlights. It can also be responsible for controlling related equipment (according to project configuration requirements);

2)Two track suspension beams and a hoist are installed on the top of the engine room, with a lifting capacity of 0.5 tons per beam;

3)Inlet of engine air filter and the engine room are equipped with electric heating devices to avoid freezing and blockage (optional);

4)The floor of the machine room is equipped with an axial drive mechanism for the generator, which enables the generator to detach from the coupling by 200mm. (Optional)

5)If the indoor heating temperature in the machine room is not lower than 5 ℃, an insulation layer needs to be installed under the chassis of the machine room, and electric heating heaters (optional) are used inside the machine room;

6)One explosion-proof acoustic and visual alarm lamp is installed outside each machine room. The lighting inside the machine room is an explosion-proof LED lamp with emergency function. Other equipment and boxes do not need to be explosion-proof (optional).

7)Ladder: Install a simple ladder at a suitable position on the box;

8)Configure the fire protection system in the machine room: Install dry powder fire extinguishers as fire extinguishing devices (standard), and other flame detectors, methane leak detectors, smoke detectors, etc. as optional options;

9)Note: The specific configuration shall be subject to the actual situation of the project.

Application case：

Functional description:

1)The container is equipped with a distribution box to provide power to all low-voltage loads in the engine room, such as horizontal radiator fans, control screens, lighting, exhaust (supply) fans (for horizontal distribution), chargers, electric heating (optional), oil pumps, electric heating (optional), and outdoor searchlights. It can also be responsible for controlling related equipment (according to project configuration requirements);

2)Two track suspension beams and a hoist are installed on the top of the engine room, with a lifting capacity of 0.5 tons per beam;

3)Inlet of engine air filter and the engine room are equipped with electric heating devices to avoid freezing and blockage (optional);

4)The floor of the machine room is equipped with an axial drive mechanism for the generator, which enables the generator to detach from the coupling by 200mm. (Optional)

5)If the indoor heating temperature in the machine room is not lower than 5 ℃, an insulation layer needs to be installed under the chassis of the machine room, and electric heating heaters (optional) are used inside the machine room;

6)One explosion-proof acoustic and visual alarm lamp is installed outside each machine room. The lighting inside the machine room is an explosion-proof LED lamp with emergency function. Other equipment and boxes do not need to be explosion-proof (optional).

7)Ladder: Install a simple ladder at a suitable position on the box;

8)Configure the fire protection system in the machine room: Install dry powder fire extinguishers as fire extinguishing devices (standard), and other flame detectors, methane leak detectors, smoke detectors, etc. as optional options;

9)The machine room requires a silent type, with 85dB at 1m.

10)Note: The specific configuration shall be subject to the actual situation of the project.

Application case：

On the basis of Z12V190B diesel engine, series 2000 diesel engines have been greatly improved in terms of improving the reliability, economy, power performance, appearance quality and convenience for maintenance of diesel engines, so as to better meet the requirements of power for various oil drilling rigs, generator sets and construction machinery.

12V175 diesel engine has the characteristics of high supercharging, low energy consumption, high reliability, and long life，Its dynamic performance, economy, reliability, and emission index have reached the international advanced level through the use of electronic control, high-pressure common rail, Miller cycle, exhaust after-treatment, high-efficiency supercharger and other new technologies. The average effective pressure of diesel engine reaches 2.0mpa, the first overhaul period reaches 35,000 hours, and the bare engine emission meets GB20891 II. 12V175 diesel generator set is a high-performance power set developed for the working condition of an electric drilling machine. According to the characteristics of oilfield working conditions, the Genset been designed in such aspects as starting performance, sudden reduction capacity, and continuous working capacity: In order to realize unattended, the Genset installed a remote monitoring system, which realized the real-time recording of the Genset field data and remote monitoring on the Internet.

so as to better meet the power requirements of various oil drilling rigs, generator sets and construction machinery.2000 series diesel engine can be matched with torque converter engine set, Hydraulic transmission coupling set and diesel generator set, used for driving drilling rigs or mud pumps, and can also be matched with fire pump, flood pump, etc.

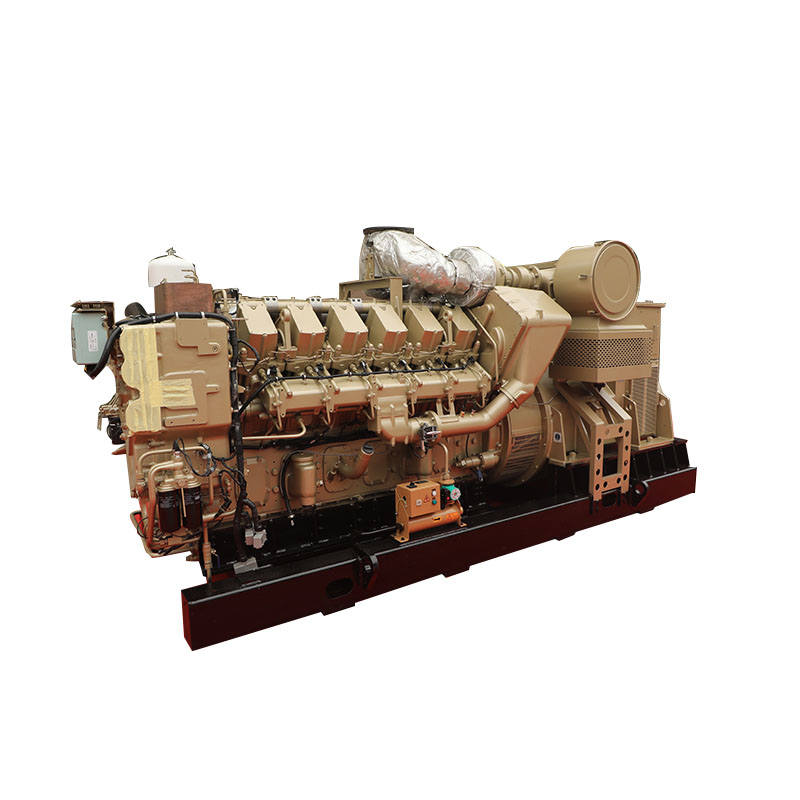

12V175 diesel generator set is a high-performance power set developed for the working condition of an electric drilling machine. According to the characteristics of oilfield working conditions, the Genset has been designed in terms of starting performance, sudden reduction capacity, and continuous working capacity. In order to realize unattended operation, Genset has installed a remote monitoring system, which realizes the real-time recording of the Genset field data and remote monitoring on the Internet.

On the basis of the Z12V190B diesel engine, the 2000 series diesel engine has been greatly improved in terms of reliability, economic and power performance, appearance quality, maintenance, etc., so as to better meet the power requirements of various oil drilling rigs, generator sets, and construction machinery. It has been used in many electric drill projects.

Series 140 engine is a high-performance, high-speed engine with full intellectual property rights developed by Jichai and AVL, featuring high pressurization, low energy consumption, high reliability, and long service life. It can meet the TIER2 and European Ⅲ emission standards,　Widely used in oil vehicle drilling rigs, oil specials, wellsite generator sets, mobile power stations or backup power sources, construction machinery, trucks, and other fields. Each technical index achieves the international advanced level, the domestic leading level of 5-10 years.

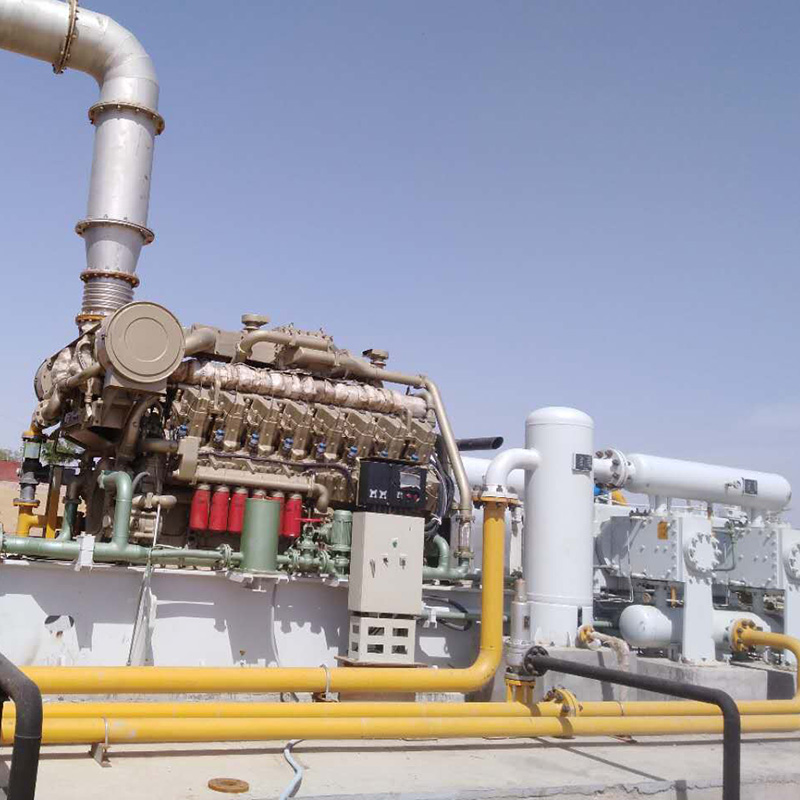

The power range of China's gas engine is mainly from 200kW to 600kW, and the market demand for gas engines above 1000kW is very big.6000 series gas engine is a high-power gas engine developed by our company for this situation. Now this series of gas engine power can be up to 1600 kw. It adopts the most advanced technology of air-fuel ratio control, engine performance, fuel economy, reliability, and security were greatly improved, and its main performance index has reached the international advanced level, can form a complete set of gas generator and compressor set, meet the demand of the city, well-site power supply and compressor.

On the basis of Z12V190B diesel engine, the 2000 series diesel engine has been greatly improved in terms of improving the reliability, economic performance, and power performance of diesel engine, solving three leaks, appearance quality, and maintenance, etc., so as to better meet the power requirements of various oil drilling rigs, generator sets, and construction machinery. Series 2000 diesel engines can be matched with torque converter sets, coupler sets, and diesel generator sets for driving drilling rigs or mud pumps, as well as fire pumps and flood pumps, etc.

Jichai series 140 engine is a high-performance, high-speed engine developed by Jichai in cooperation with AVL with all intellectual property rights，It has the feature of high pressure, low energy consumption, high reliability, long - life, meets the TIER2 and European Ⅲ emission standards，it is widely used in oil vehicle drilling rigs, oil specials, wellsite generator sets, mobile power stations or backup power sources, construction machinery, trucks and other fields. Each technical index achieves the international advanced level, the domestic leading level of 5-10 years.

12V175 diesel engine has the characteristics of high supercharging, low energy consumption, high reliability, and long life，through the use of electronic control, high-pressure common rail, Miller cycle, exhaust after-treatment, high-efficiency supercharger, and other new technologies，Its dynamic performance, economy, reliability, and emission index have reached the international advanced level: The average effective pressure of diesel engine reaches 2.0mpa, the first overhaul period reaches 35,000 hours, and the bare engine emission meets GB20891 II.12V175 diesel-oil generator set is a kind of high-performance power set developed for the working condition of electric drilling machine. According to the characteristics of oilfield working conditions, the engine has been designed in terms of starting performance, sudden reduction capacity, and continuous working capacity. In order to realize unattended operation, the engine has installed a remote monitoring system, which realizes the real-time recording of the engine's field data and remote monitoring on the Internet.

The power range of China's gas engine is mainly from 200kW to 600kW, and the market demand for gas engines above 1000kW is very big. Series 6000 gas engine is a high-power gas engine developed by our company for this situation. Now the series of gas engine power can be up to 1600 kw. It adopts the most advanced technology of air-fuel ratio control, engine performance, fuel economy, reliability and security were greatly improved, and its main performance index has reached the international advanced level, can form a complete set of gas generator and compressor sets, meet the needs of urban and wellsite power supply and compressor markets.

“V” series is the latest design and manufacture lighting tower with the vertical telescopic mast, and the smaller size makes the transportation become more convenient. The “V” series includes VL, VP, VS.

“i” series lighting tower is a new product adopting the USA design concept.

Its highlights are as follows:

-It can be equipped with traditional metal halide lamps, or with 4x300W high power, high luminous efficiency and energy-saving LED lamps.

-The whole structure is compact, light, beautiful, and equipped with a large capacity of 100L fuel tank. The container loading capacity of lighting tower can reach 16 units.

-The new developed electric winch is adopted for the mast lifting, which is easy to operate simply. Manual operation will be added later to improve product safety reliability.

-High strength support legs and increased support radius are adopted to enhance the stability of the lighting tower in the wind.

“T” series is a traditional type. It is competitive in price and practical.

Product Configuration

Features include a QR code scanner, high-precision meter, direct-coupled gear pump, anti-cheating encoder, explosion-proof motor, explosion-proof solenoid valve, anti-static oil product confirmation button, metal keyboard, anti-cheating, dual-interface card reader, emergency stop button, voice intercom extension, self-sealing fuel nozzle, anti-static oil delivery hose, thermal paper receipt printer, LED backlight large screen, license plate payment, ETC contactless payment function, and 32-inch smart interactive touch screen.

Product Parameters

This product is a new product with completely independent intellectual property rights developed by Jichai on the basis of 20 years of technical accumulation, historical background, and integration of advantageous resources in the industry. The products are integrated with a single-stage two-phase hydraulic torque converter, one-way clutch, locking clutch, hydraulic retarder, planetary transmission, power shift, ECU control, electro-hydraulic shift valve set, and other system units, which have the advantages of compact structure, easy operation, and reliable operation.
